Crosby 3/8″ S-421T Terminator Wedge Socket – #1035000

The Crosby 3/8" S-421T Terminator Wedge Socket is part of the Crosby wedge socket range (catalogue no. 1035000). Sealinkers supplies it from Mumbai with documentation on request.

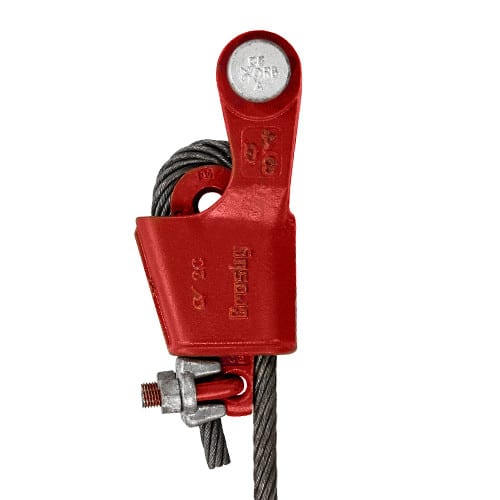

Crosby S-421T Terminator™ Wedge Socket – Safer, More Efficient Wire Rope Termination
The Crosby S-421T Terminator™ Wedge Socket is a premium wire rope end fitting designed to deliver safer, more reliable terminations compared to traditional wedge sockets. Featuring Crosby’s patented Terminator wedge design, this system secures both the live and dead ends of the wire rope—eliminating common failure points like tail breakage and wedge loss.
Engineered for heavy-duty lifting and rigging applications, the S-421T combines proven Crosby durability with enhanced safety features like the QUIC-CHECK® system for quick, visual rope size verification. Whether you're working in construction, oil & gas, marine, or general industrial lifting, this wedge socket provides dependable performance with simplified installation.
Each assembly includes the socket body, Terminator wedge, round pin, and Crosby Red U-Bolt® wire rope clip. Bolt, nut, and cotter pin versions (S-421TB) are available as special order.
Key Features Terminator™ Wedge Design: Secures the dead end of the rope, eliminating wedge slippage and tail fatigue failure
QUIC-CHECK® System: Built-in “Go” and “No-Go” holes ensure proper rope size selection
No Extra Rope Required: Eliminates the need for additional tail length
Cast Steel Basket: Individually magnetic particle inspected for quality assurance
Versatile Compatibility: Works with closed swage and spelter sockets
Easy Installation: Simple assembly with standard Crosby Red U-Bolt® wire rope clip
Retrofit Capability: Standard S-421 sockets (3/8"–1-1/8") can be upgraded to Terminator wedges Important: Wedge sockets do not have a traditional Working Load Limit (WLL). Instead, they have an efficiency rating of 80% based on the catalog strength of XXIP wire rope. This means the strength of the termination is dependent on the rope being used—not a standalone rating—so always reference the wire rope’s published strength when determining capacity.
Specifications (Round Pin Style) Part No.
Wire Rope Size (in)
Wire Rope Size (mm)
Replacement Wedge
Replacement Round Pin Kit
Weight (lbs) 1035000
3/8"
9–10
1035555
1085723
3.30 1035009
1/2"
11–13
1035564
1085724
6.10 1035018
5/8"
14–16
1035573
1085725
10.5 1035027
3/4"
18–19
1035582
1085726
16.4 1035036
7/8"
20–22
1035591
1085727
24.8 1035045
1"
24–26
1035600
1085728
35.5 1035054
1-1/8"
28
1035609
1085729
48.8 1035063
1-1/4"
30–32
1035618
1085730
71.5 For intermediate wire rope sizes, use the next larger socket size. Meets ASME B30.26 and EN 13411-6 performance requirements. ABS Type Approval and API-2C certification available upon request.

Specifications

Prices, stock and lead times are quoted on request. Use the quote form or WhatsApp on this page, and ask for test certificates with your enquiry.
