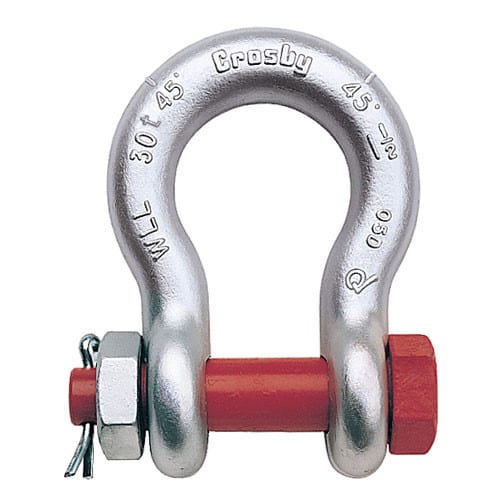

The Crosby 3/8" G-2140 Alloy Bolt Type Anchor Shackle – 2 Ton WLL is part of the Crosby shackle range (catalogue no. 1021015). Sealinkers supplies it from Mumbai with documentation on request.
Crosby G-2140 Alloy Bolt Type Anchor Shackles
Crosby G-2140 Shackles are heavy-duty anchor shackles engineered for lifting and rigging in demanding environments. They feature quenched-and-tempered forged alloy steel bows and alloy bolts, permanent WLL markings, and compliance with major industry standards. The dimensional drawing is provided for quick reference. Features Forged Alloy Steel Construction: Alloy bows and alloy bolts, quenched & tempered for superior strength.
Grade 8 Performance: Meets or exceeds the performance requirements of Grade 8 shackles.
Permanent Identification: Working Load Limit (WLL) is permanently shown on every shackle.
Material Range: Forged alloy steel from 2 through 250 metric tons; 400 metric ton model is cast alloy steel.
Finish Options: 30, 40, 55, and 85 metric ton shackles – bows available galvanized (G) or self-colored (S); bolts galvanized and painted red.
Size 3/8" is mechanically galvanized.
120, 150, and 175 metric ton shackles – hot-dip galvanized bows; bolts Dimetcoted and painted red.
200, 250, 300, and 400 metric ton shackles – Dimetcoted bows; bolts Dimetcoted and painted red. Temperature Rating: Approved for use from -40°F (-40°C) to 400°F (204°C).
Impact Rated: Shackles can meet DNV impact requirements of 42 Joules (31 ft-lb) at -4°F (-20°C).
Crosby COLD TUFF® Option: Available models meet DNV rules for lifting applications requiring enhanced toughness.
Large Size Traceability: Shackles 200 metric tons and larger are furnished with serialized bolts and bows, material certification, and magnetic particle inspection. Certification must be requested at time of order.
Certifications: Type Approval available per ABS 2016 Steel Vessel Rules and ABS Guide for Certification of Lifting Appliances (certificates available upon request).
Standards Compliance: Meets or exceeds all requirements of ASME B30.26 for identification, ductility, design factor, proof load, and temperature rating. G-2140 also meets Federal Specification RR-C-271H, Type IVA, Grade B, Class 3 (except contractor provisions).
Design Factors: 4.5:1 (2–21t), 5.4:1 (30–175t), 4:1 (200–400t). Proof load = 2× WLL.
Look for the Red Pin®: The mark of genuine Crosby quality and traceability. Specifications /* G-2140 table only */ #g2140-specs { border-collapse: collapse; width: 100%; font-size: 14px; } #g2140-specs th, #g2140-specs td { border: 1px solid #ccc; padding: 8px; text-align: left; } #g2140-specs thead th { background: #f2f2f2; } @media (max-width: 640px) { #g2140-specs th, #g2140-specs td { padding: 6px; } } Nominal Size (in)
WLL (t)
G-2140 Stock No.
Weight (lb)
A
B
C
D
E
F
G
H
J
K
L
M
N 3/8
2
1021015
0.33
0.66
0.91
0.38
0.44
1.44
0.38
1.78
2.17
2.49
1.03
0.38
—
— 7/16
2.67
1021020
0.49
0.75
1.06
0.44
0.50
1.69
0.41
2.03
2.51
2.91
1.16
0.44
—
— 1/2
3.33
1021029
0.79
0.81
1.19
0.50
0.64
1.88
0.46
2.31
2.80
3.28
1.31
0.50
—
— 5/8
5
1021038
1.68
1.06
1.50
0.69
0.77
2.38
0.58
2.94
3.56
4.19
1.69
0.63
—
— 3/4
7
1021047
2.72
1.25
1.81
0.81
0.89
2.81
0.69
3.50
4.15
4.97
2.00
0.75
—
— 7/8
9.5
1021056
3.95
1.44
2.09
0.97
1.02
3.31
0.81
4.03
4.82
5.83
2.28
0.88
—
— 1
12.5
1021065
5.66
1.69
2.38
1.06
1.15
3.75
0.92
4.69
5.39
6.56
2.69
1.00
—
— 1-1/8
15
1021074
8.27
1.81
2.69
1.25
1.25
4.25
1.04
5.16
5.90
7.47
2.91
1.13
—
— 1-1/4
18
1021083
11.7
2.03
3.00
1.38
1.40
4.69
1.16
5.75
6.69
8.25
3.25
1.29
—
— 1-3/8
21
1021092
15.8
2.25
3.31
1.50
1.53
5.25
1.28
6.38
7.21
9.16
3.63
1.42
—
— 1-1/2
30
1021110
18.8
2.38
3.62
1.62
1.63
5.75
1.39
6.88
7.73
10.00
3.88
1.53
—
— 1-3/4
40
1021138
33.8
2.88
4.19
2.25
2.00
7.00
1.75
8.81
9.33
12.34
5.00
1.84
—
— 2
55
1021156
49.9
3.25
4.81
2.40
2.25
7.75
2.00
10.16
10.41
13.68
5.75
2.08
—
— 2-1/2
85
1021174
103
4.12
5.81
3.12
2.75
10.50
2.62
12.75
13.58
17.90
7.25
2.71
—
— 3
120
1021192
162
5.00
6.50
3.63
3.25
13.00
3.00
14.62
15.13
21.50
7.88
3.12
—
— 3-1/2
150
1021218
268
5.25
8.00
4.38
3.75
14.63
3.75
17.02
20.33
24.88
9.00
3.62
4.00
1.80 4
175
1021236
318
5.50
9.00
4.56
4.25
14.50
4.00
18.00
21.20
25.68
10.00
4.00
4.00
1.80 4-3/4
200
1021234
461
7.25
10.50
5.00
4.75
15.19
4.58
20.84
24.04
27.81
11.00
4.75
4.00
1.80 5
250
1021243
608
8.50
12.00
5.62
5.00
18.50
4.85
23.62
24.87
32.61
13.00
5.00
4.00
1.80 6
300
1021252
797
8.38
13.00
6.06
6.00
18.72
4.89
24.76
26.22
34.28
13.00
5.88
4.00
1.80 7*
400
1021478
1289
8.25
14.00
7.25
7.00
22.50
6.50
26.00
29.66
40.25
13.00
6.00
4.00
1.80 Notes: * 7" size is cast alloy steel. Sizes 3½" through 7" are furnished with round head bolts with a handle.
Specifications
| Catalogue description | G2140 2 T 3/8" ALLOY ANCHOR SHACKLE |
|---|---|
| Crosby product no. | 1021015 |
Prices, stock and lead times are quoted on request. Use the quote form or WhatsApp on this page, and ask for test certificates with your enquiry.
