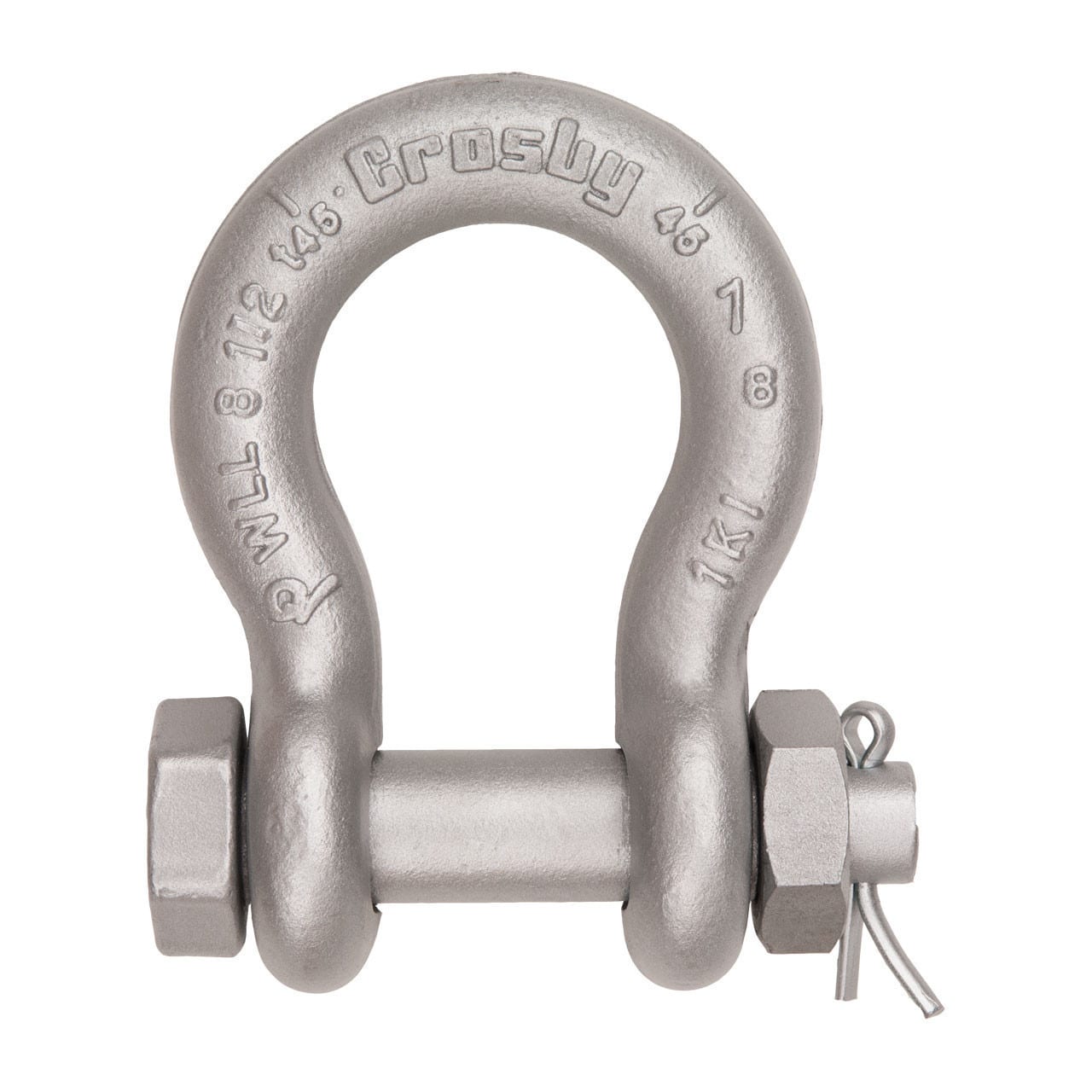

The Crosby 1" G-2130A Grade 80 Alloy Bolt Type Anchor Shackle – 8-1/2 Ton WLL is part of the Crosby shackle range (catalogue no. 1219552). Sealinkers supplies it from Mumbai with documentation on request.
Forged alloy steel, Quenched & Tempered, with bow and bolt
Meets or exceeds all requirements of Grade 8 shackles
Working Load Limit permanently shown on every shackle
Hot-dip galvanized
Meets or exceeds all requirements of ASME B30.26, including identification, ductility, design factor, proof load, and temperature requirements Importantly, G-2130A meet other critical performance requirements, including impact properties, and material traceability not addressed by ASME B30.26 Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds, or other certification when requested at time of order (additional fees apply)
Type Approval and certification in accordance with DNV 2.7-1 offshore containers
Shackles are Quenched & Tempered and meet DNV impact requirements of 42 Joules (31 ft-Ib) at -40° C (-40° F)
G-2130A Bolt Type Anchor shackles with thin head bolt – nut with cotter pin, meets the performance requirements of Federal Specification RR-C271H, Type IVA, Grade B, Class 3, except for those provisions required of the contractor.
Specifications
| Catalogue description | G2130A 8-1/2T 1" ALLOY BOLT TYPE SHACKLE |
|---|---|
| Crosby product no. | 1219552 |
