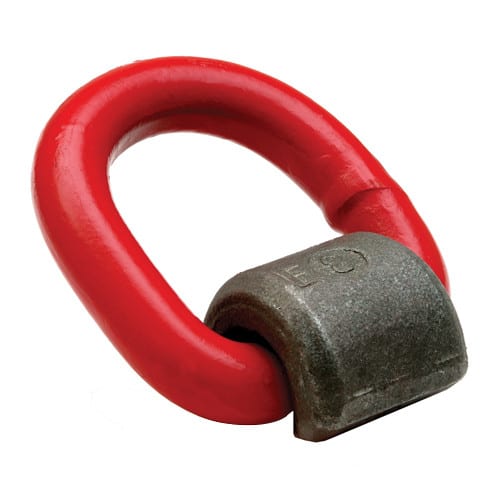

The Crosby 1.2 Ton S-265 Weld-on Pivot Link is part of the Crosby link range (catalogue no. 1290839). Sealinkers supplies it from Mumbai with documentation on request.
Weld-On Lifting Links Designed for Secure, Permanent Installations
The Crosby S-265 Weld-On Pivot Links are forged, quenched, and tempered lifting points engineered for permanent attachment to steel structures. Designed to meet the demands of heavy-duty lifting applications, these links are ideal for use on farm machinery, trucks, steel-hulled marine vessels, and industrial handling equipment. Unlike basic weld-on pads or hooks, these pivot links are rated for overhead lifting and built to handle critical load conditions.
Each S-265 link features a forged bail that pivots 180°, allowing free movement under load, and is mounted to a precision-machined base with excellent welding properties. With working load limits ranging from 2,200 lbs to 26,450 lbs (5:1 design factor), and multiple sizes available, you can match the exact capacity and dimensional needs of your application. WLL Range: 2,200 lbs to 26,450 lbs (5:1 design factor); also rated for 4:1 if required
Available sizes: Five different models with varying load capacities and weld sizes
Material: Forged steel, quenched and tempered for strength and toughness
Design: Bail pivots 180° for load alignment and flexibility during lifts
Welding: Designed to be welded to steel workpieces only — follow AWS welding procedures
Mounting surface: Must be clean, flush, and free of spacers or contaminants
Applications: Common in agriculture, marine, utility vehicles, and heavy industry
Safety factor: 5:1 design factor as standard, 4:1 optional rating Properly Rated Lifting Links for Permanent Steel Integration
Crosby S-265 Weld-On Pivot Links are engineered for structural welding and certified lifting use. With detailed installation and welding guidelines, these links ensure consistent, safe lifting performance. Always select the correct size based on the working load limit, and install using qualified welders and approved procedures. When properly installed and inspected, these links provide a permanent, high-integrity lifting point wherever you need it.
Specifications
| Crosby product no. | 1290839 |
|---|---|
| Catalogue description | S265 1,2TX13MM |
Prices, stock and lead times are quoted on request. Use the quote form or WhatsApp on this page, and ask for test certificates with your enquiry.
