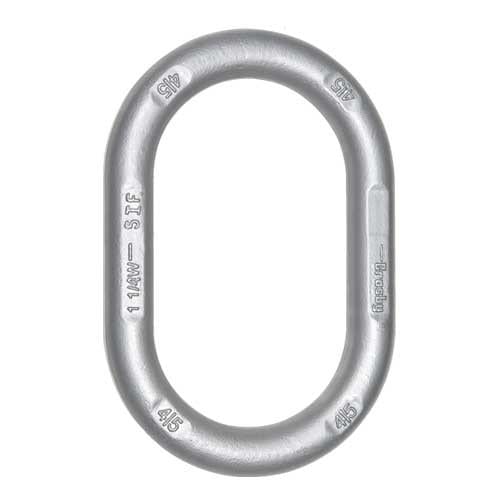

Crosby 1-1/4″ A-342W Alloy Master Link – 39100 lbs WLL – #3522215

Request a quote

Price, stock and lead time by email, usually within one working day. Ask for test certificates with your enquiry.

Description

The Crosby 1-1/4" A-342W Alloy Master Link – 39100 lbs WLL is part of the Crosby link range (catalogue no. 3522215). Sealinkers supplies it from Mumbai with documentation on request.

Crosby A-342 Forged Alloy Master Links
The Crosby A-342 Master Links are built for critical lifting applications where performance, traceability, and fatigue life matter. A major advantage of the A-342 series is that these links are forged (not welded like many common master links), delivering superior grain flow, strength consistency, and long-term durability.
Manufactured from quenched & tempered alloy steel, each link is individually proof tested with certification and uses fixtures sized to prevent localized point loading. Forgings include a Product Identification Code (PIC) for material traceability, plus raised markings for size, Crosby, and USA. Selected sizes designated with “W” have enlarged inside dimensions to provide additional room for sling hardware and crane hooks.
Key Features: Forged alloy steel construction (not welded)
Quenched & tempered for strength, toughness, and fatigue resistance
Individually proof tested with certification
Proof tested with special fixtures to prevent localized point loading
Forged-in markings and PIC for full material traceability
Patented QUIC-CHECK® deformation indicators
Fatigue rated to 20,000 cycles at 1.5× WLL
Meets or exceeds all requirements of ASME B30.26 Specifications – Crosby A-342 Forged Master Links Stock No.
Size (in.)
Size (mm)
WLL (lbs)
Inside Width B (in.)
Inside Length C (in.)
Weight (lbs) 1014266
1/2W
13W
7,400
2.80
5.00
1.3 1014280
5/8
16
9,000
3.00
6.00
1.5 1014285
3/4W
19W
12,300
3.20
6.00
2.0 3522213
7/8W
22W
15,200
3.75
6.38
3.3 3522214
1W
26W
26,000
4.30
7.50
6.1 3522215
1-1/4W
32W
39,100
5.50
9.50
12.0 3522216
1-1/2W
38W
61,100
5.90
10.50
18.6 3522217
1-3/4
44
84,900
6.00
12.00
25.2 3522218
2
51
102,600
7.00
14.00
37.0 1014422
2-1/4
57
143,100
8.00
16.00
54.1 1014468
2-1/2
63
160,000
8.38
16.00
68.5 1014440
2-3/4
70
216,900
9.88
18.00
94.0 1014486
3
76
228,000
9.88
18.00
115 1014501
3-1/4
83
262,200
10.00
20.00
145 1014529
3-1/2
89
279,000
12.00
24.00
200 1015051
3-3/4
95
336,000
10.00
20.00
198 1015060
4
102
373,000
12.00
24.00
264 Product Notes:5:1 Design Factor. Based on single leg sling (in-line load), or resultant load on multiple legs with an included angle less than or equal to 120 degrees. Applications with wire rope and synthetic sling generally require a design factor of 5. Proof Test Load equals or exceeds the requirement of ASTM A952(8.1) and ASME B30.9. Offshore Container Master Links (Stock Nos. 3522213 – 3522218) are proof tested to 2.5 times the Working Load Limit with 70 percent fixtures. Chain slings require that the Minimum Ultimate Load be 4 times the Working Load Limit. Refer to Applications & Warnings to determine the product’s actual Ultimate Load. Proof Test Load equals or exceeds the requirements of ASTM A952(8.1) and ASME B30.9-1.4 for the applicable chain size and number of legs.
