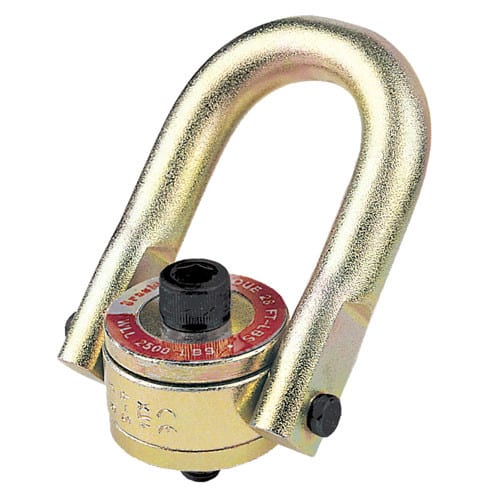

Crosby 1-1/4″-7 x 2.21″ HR-125UNC Swivel Hoist Ring – 15000 lbs WLL – #1016975

Request a quote

Price, stock and lead time by email, usually within one working day. Ask for test certificates with your enquiry.

Description

The Crosby 1-1/4"-7 x 2.21" HR-125UNC Swivel Hoist Ring – 15000 lbs WLL is part of the Crosby swivel range (catalogue no. 1016975). Sealinkers supplies it from Mumbai with documentation on request.

Crosby HR-125 Swivel Hoist Rings (UNC & Metric Threads)
The Crosby HR-125 series represents one of the industry’s most trusted lines of heavy-duty swivel hoist rings. Each unit is precision-engineered from quenched and tempered alloy steel, providing full Working Load Limit (WLL) use through a complete 180° pivot and 360° rotation. These hoist rings are proof tested individually to 2.5 times the WLL and meet or exceed all requirements of ASME B30.26 for identification, ductility, design factor, proof load, and temperature performance.
Finish by Frame Size: Frame Sizes 1–3 are supplied with a zinc-plated (yellow chromate) finish for corrosion resistance, while Frame Sizes 4–8 feature a durable black oxide finish per current Crosby manufacturing specifications.
Thread Options & Capacities UNC (Red Washer): WLLs from 800 lb to 100,000 lb, covering sizes from 5/16 in to 2-1/2 in. Each hoist ring includes an alloy socket head cap screw to ASTM A574 and is available in multiple bolt lengths for ferrous and soft-metal applications.
Metric (Silver Washer): WLLs from 350 kg to 13,500 kg, covering sizes from M12 × 1.75 to M48 × 5.00 threads. Key Features Manufactured from quenched and tempered alloy steel for superior strength and toughness.
Color-coded washers identify thread type — Red for UNC, Silver for Metric — for quick visual reference.
Top washer permanently stamped with WLL and torque values for traceable safety compliance.
All sizes proof tested individually and traceable by lot number.
Full 180° pivot and 360° swivel allows safe load alignment in any direction. Important Safety Notes: Never exceed the rated Working Load Limit.
Use only on ferrous or soft-metal (e.g., aluminum) workpieces — avoid long-term installation in aluminum due to corrosion risk.
Do not use spacers between the hoist ring flange and the mounting surface; ensure full contact with a 90° drilled and tapped hole.
Install using a calibrated torque wrench to the values stamped on each unit.
Inspect regularly — never use a hoist ring showing signs of wear, corrosion, or deformation.
Not for subsea or marine applications — for those environments, use Crosby HR-1000CT series only. Compliance: Meets or exceeds ASME B30.26 standards and includes fatigue life, impact, and material traceability requirements not addressed in the base specification.
